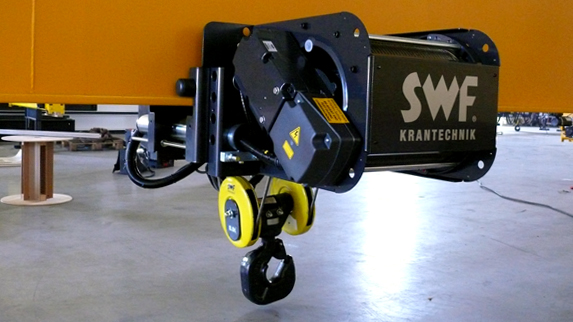

Nova Blackline single and double girder trolley upto 20 T

The BLACKLINE is constructed for the economic lifting of charges. It is safe, reliable and based on a proven technological design. It combines a strong hoist with an attractive price.

High quality, long life and performance are the NOVA BLACKLINE‘s genetic basis. It covers a wide spectrum of load handling with an ultimate load of 12.5 tons. The BLACKLINE is an uncompromising and robust powerhouse, reduced to the essential.


• Ultimate load from 2 to 12,5 tons and a lifting height up to 12 meters
• Optimal space and land utilization due to compact headroom and optimum hook dimension
• Minimized attrition of rope by a big drum diameter
• Robust contactor control for hoist motor and trolley motor
• Mechanical overload protection protects crane and building structure
• Plug & play – quick and easy installation and maintenance
• Overheat protection at hoist motor prevents his damage

Key technical data

Standard equipment:
• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Mechanical overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards
• Robust rope guide made of cast iron
• Epoxy paint, 60 μm

• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 - 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C - +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel
and much more
